Coating equipment for pipe inner wall PECVD

    The inner wall coating of pipes with a length of at least 12m can be made

    The inner diameter of the pipe can be selected from 50mm~300mm

    Coating options:

    DLC coating, Si-based DLC coating, Si-C-N coating Coating properties: Super lubricating coating, super hard coating, impact resistant coating, wear resistant coating


Feature:

1. The inner wall coating of pipes with a length of at least 12m can be made

2. The inner diameter of the pipe can be selected from 50mm~300mm

Coating options:

DLC coating, Si-based DLC coating, Si-C-N coating


Coating properties:

Super lubricating coating, super hard coating, impact resistant coating, wear resistant coating


Coating realization principle:HC-CVD


Product placement:Horizontal type

Peripheral services:

Can provide customers with customized equipment for pipeline pretreatment, including customized customized machine for sandblasting and customized customized machine for cleaning


管道内壁PECVD镀膜设备

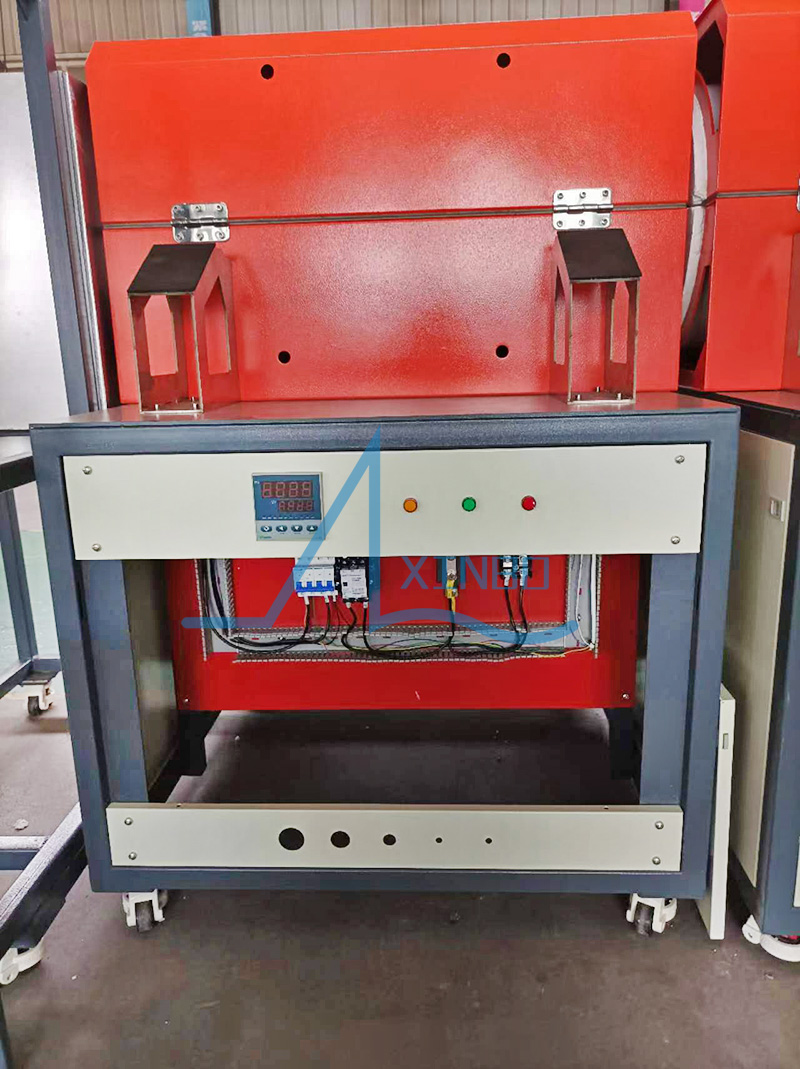

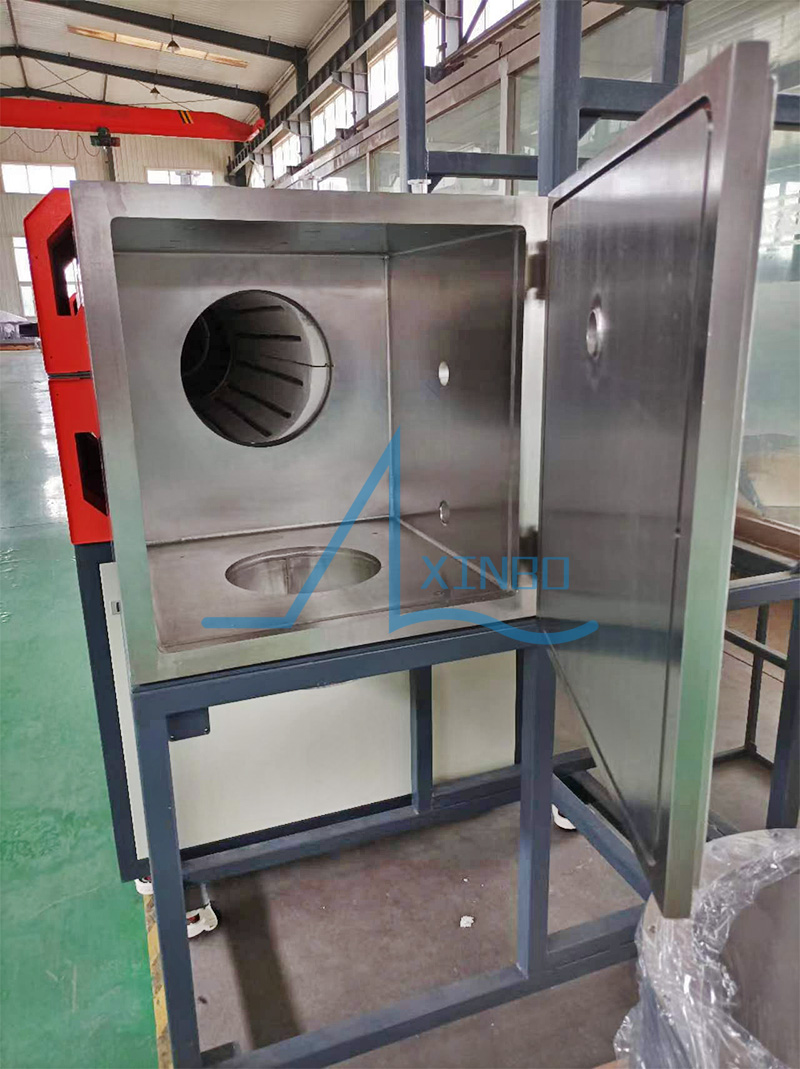

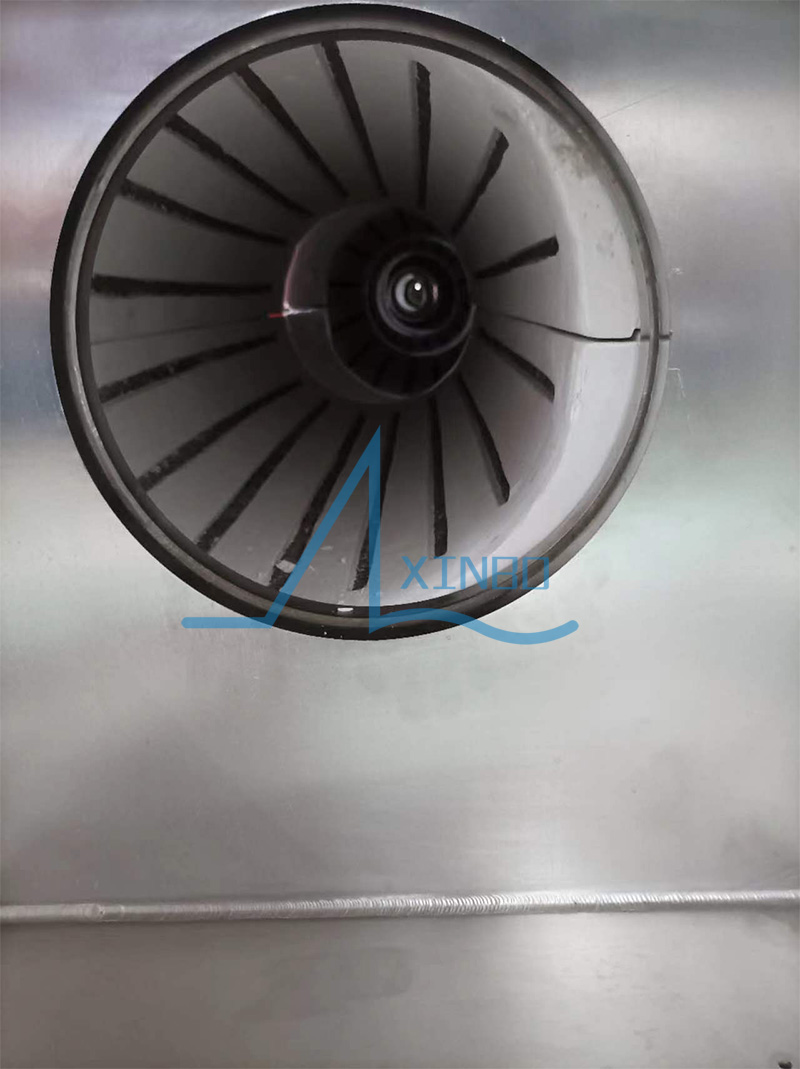

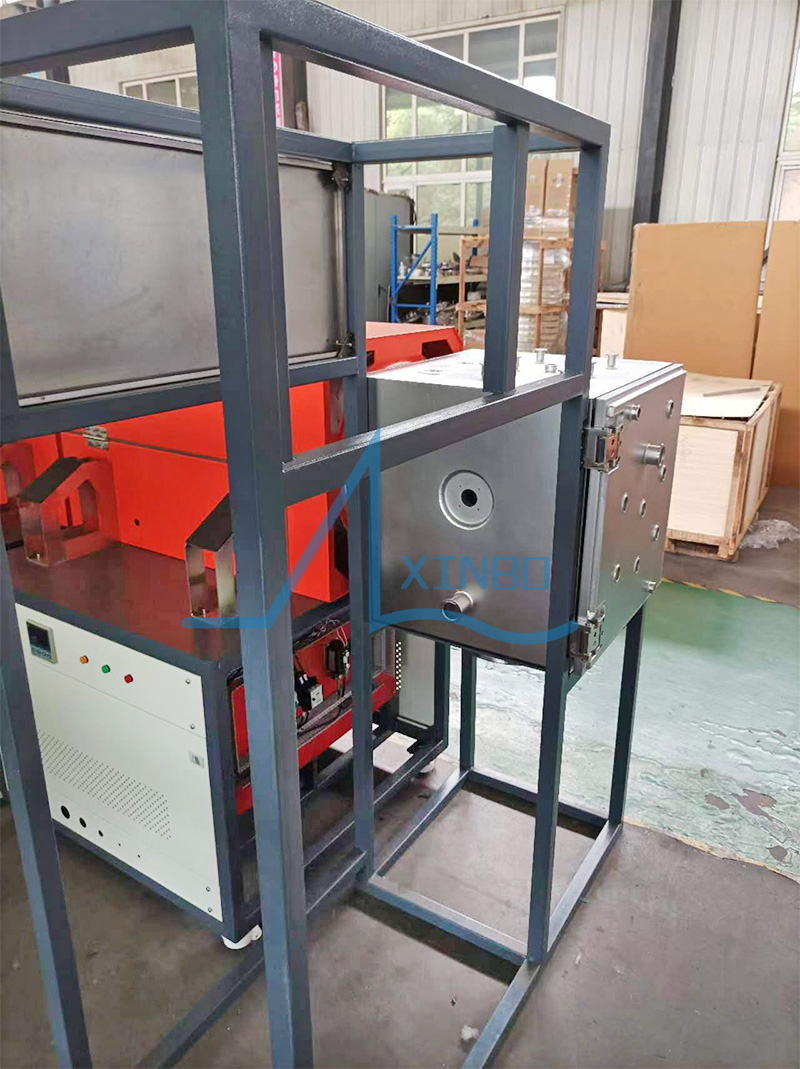

Coating equipment (Figure 1)
管道内壁PECVD镀膜设备

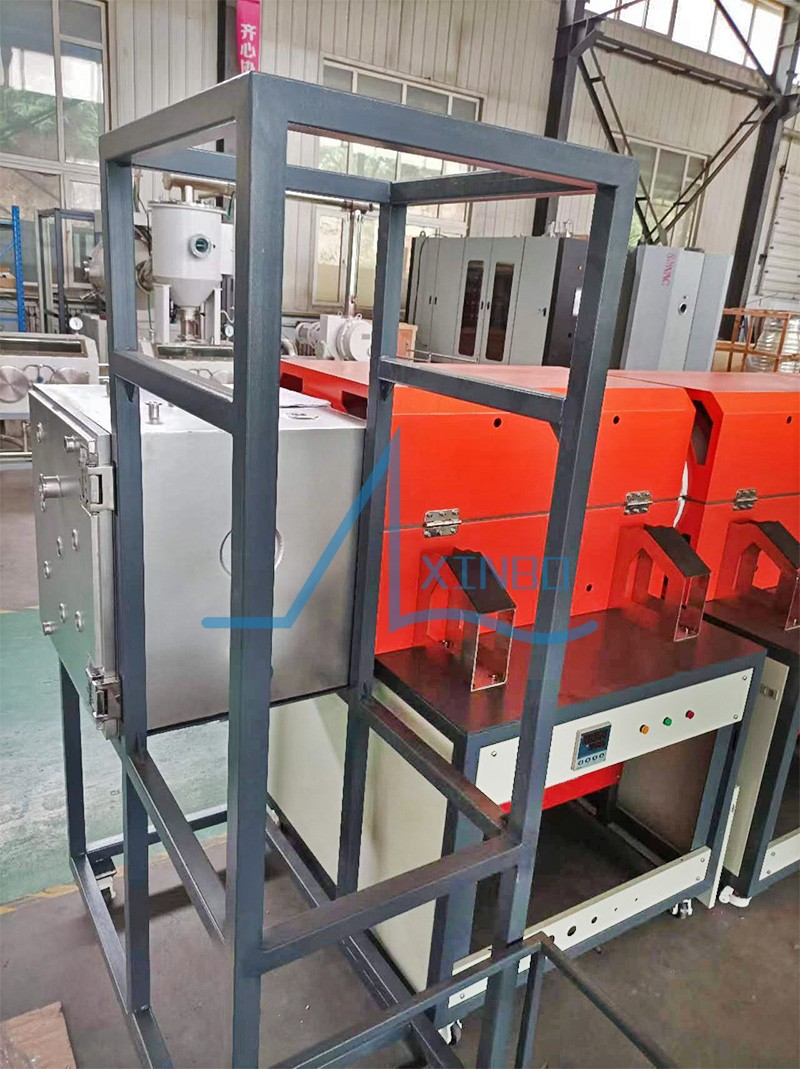

Coating equipment (Figure 2)
管道内壁PECVD镀膜设备
Coating equipment (Figure 3)
管道内壁PECVD镀膜设备
Coating equipment (Figure 4)
管道内壁PECVD镀膜设备
Coating equipment (Figure 5)


Coating equipment application cases:

镀膜设备应用案例

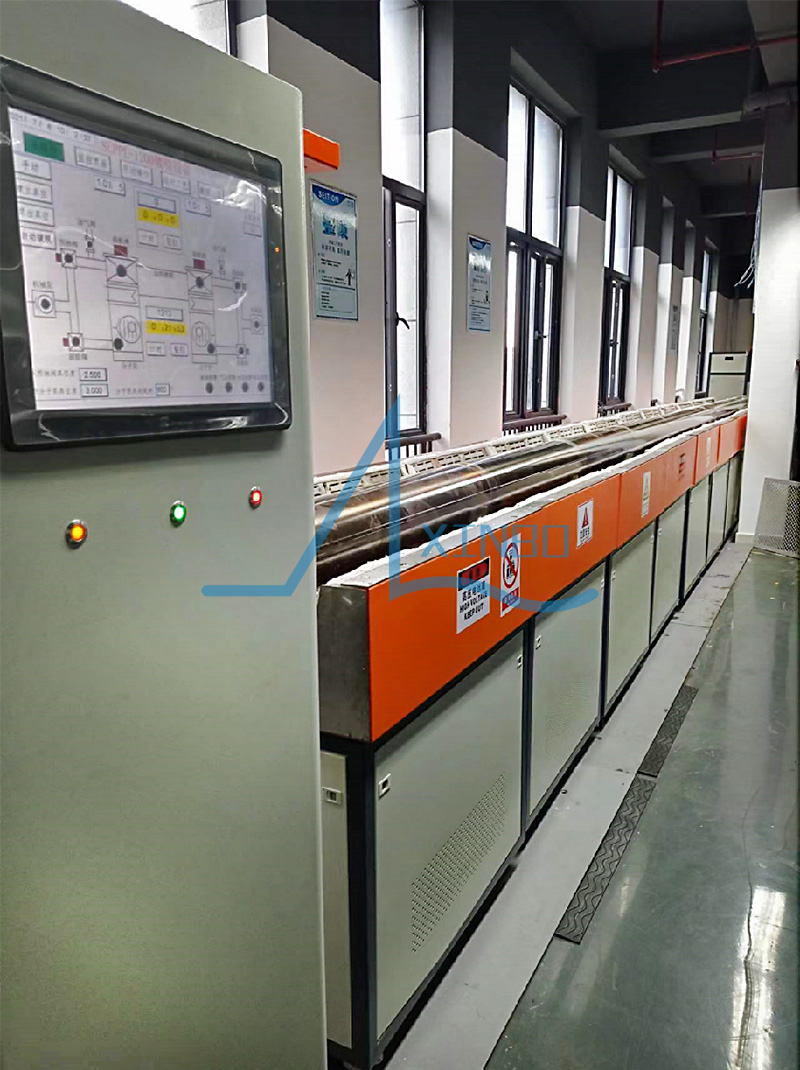

Application case of coating equipment (Figure 1)
镀膜设备应用案例
Application case of coating equipment (Figure 2)

Coating equipment use data distribution diagram:

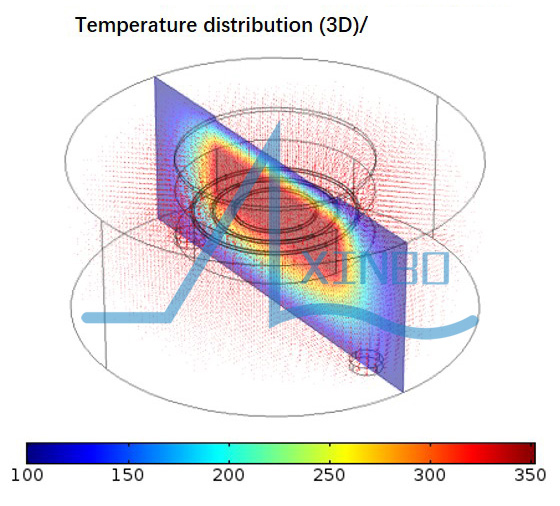

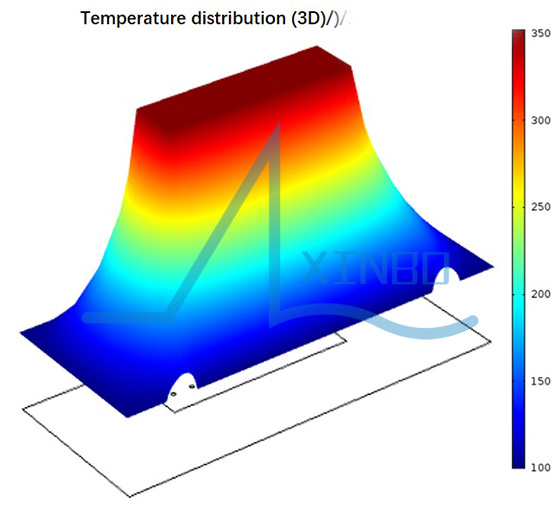

Workpiece temperature distribution 3D
Temperature of 3 d

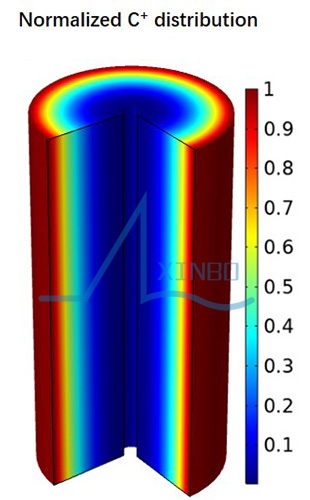

C ion distribution
Distribution of plasma

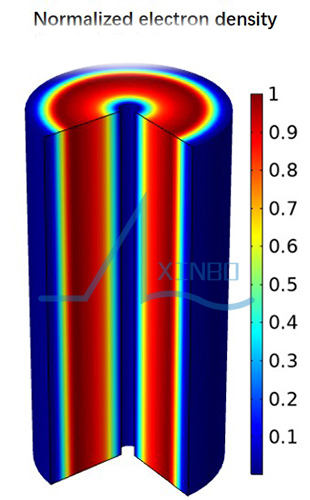

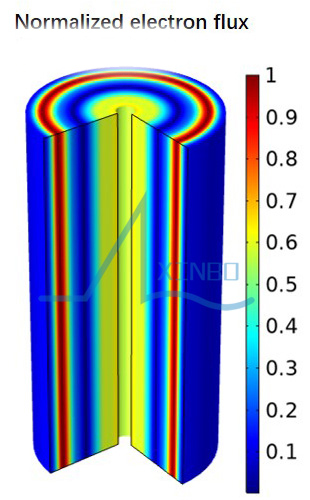

Electron flow distribution

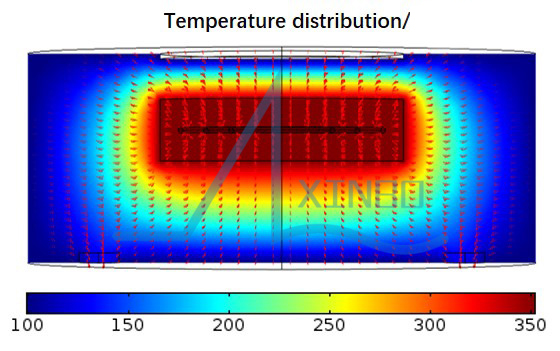

The temperature of 2 d

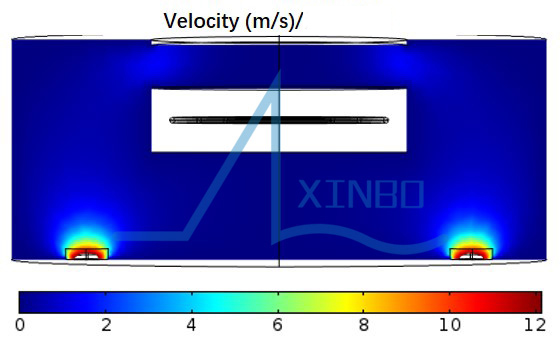

The flow field in 2 d

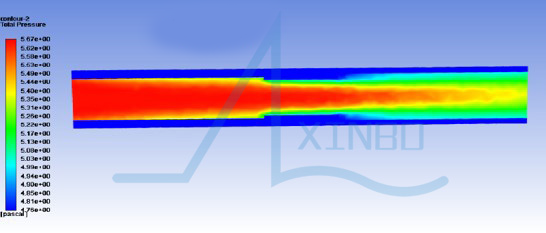

Pipe flow field

Application example of coating finished product of 20M pipeline:

20m管道镀膜成品
